Name: PXL-B13/1 - Miniature circuit breaker 1-p B13A PXL-B13/1
SKU: c69a2f973c2cbc1ea41d2cf85f2a361f
Price: 5.3 EUR
Availability: InStock

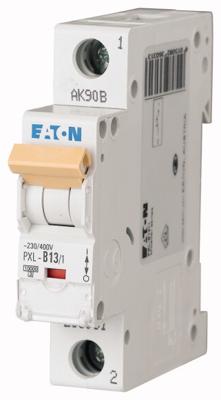

PXL-B13/1 - Miniature circuit breaker 1-p B13A PXL-B13/1

EAN: 4015082360313 - manufacturer-number: PXL-B13/1 - Miniature circuit breaker 1-p B13A Release characteristic B, Number of poles (total) 1, Number of protected poles 1, Rated current 13A, Rated voltage 230V, Rated insulation voltage Ui 440V, Rated impulse withstand voltage Uimp 4kV, Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10kA, Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10kA, Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 0kA, Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 0kA, Voltage type AC, Frequency 50 ... 60Hz, Current limiting class 3, Over voltage category 3, Pollution degree 2, Additional equipment possible, Width in number of modular spacings 1, Built-in depth 70,5mm, Degree of protection (IP) IP20, Ambient temperature during operating -25 ... 55°C, Connectable conductor cross section multi-wired 1 ... 25mm², Connectable conductor cross section solid-core 1 ... 25mm² - PXL-B13/1

5,30

A9F06232 - Miniature circuit breaker 2-p B32A A9F06232

EAN: 3606480437946 - manufacturer-number: A9F06232 - Miniature circuit breaker 2-p B32A - A9F06232

54,66

Nieuw

Eaton FAZ-S2/1 zekering Ministroomonderbreker Type S

EAN: 4015082786076 - manufacturer-number: FAZ-S2/1 - Miniature circuit breaker 1-p Release characteristic Other, Number of poles (total) 1, Number of protected poles 1, Rated current 2A, Rated voltage 230V, Rated insulation voltage Ui 440V, Rated impulse withstand voltage Uimp 4kV, Rated short-circuit breaking capacity Icn EN 60898 at 230 V 0kA, Rated short-circuit breaking capacity Icn EN 60898 at 400 V 0kA, Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 10kA, Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 10kA, Voltage type AC, Frequency 50 ... 60Hz, Current limiting class 3, Over voltage category 3, Pollution degree 2, Additional equipment possible, Width in number of modular spacings 1, Built-in depth 70,5mm, Degree of protection (IP) IP20, Ambient temperature during operating -25 ... 75°C, Connectable conductor cross section multi-wired 1 ... 25mm², Connectable conductor cross section solid-core 1 ... 25mm² - FAZ-S2/1

15,70

PKZ0-XH - Handle for power circuit breaker black PKZ0-XH

EAN: 4015081059027 - manufacturer-number: PKZ0-XH - Handle for power circuit breaker black Lockable, Colour Black, With extension shaft - PKZ0-XH

47,97

Eaton T0-2-1/E elektrische schakelaar 3P Grijs

EAN: 4015080246398 - manufacturer-number: T0-2-1/E - Safety switch 3-p 6,5kW Max. rated operation voltage Ue AC 690V, Rated permanent current Iu 20A, Rated operation power at AC-3, 400 V 4kW, Rated operation power at AC-23, 400 V 6,5kW, Conditioned rated short-circuit current Iq 0kA, Number of poles 3, Number of auxiliary contacts as normally closed contact 0, Number of auxiliary contacts as normally open contact 0, Number of auxiliary contacts as change-over contact 0, Device construction Built-in device fixed built-in technique, Suitable for front mounting 4-hole, Type of control element Toggle, Type of electrical connection of main circuit Screw connection, Degree of protection (IP), front side IP65 - T0-2-1/E

21,14

Eaton P3-100/EA/SVB/N elektrische schakelaar Draaischakelaar 3P Rood, Geel

EAN: 4015080198901 - manufacturer-number: P3-100/EA/SVB/N - Safety switch 4-p 55kW Version as main switch, Version as maintenance-/service switch, Version as emergency stop installation, Max. rated operation voltage Ue AC 690V, Rated operating voltage 690 ... 690V, Rated permanent current Iu 100A, Rated permanent current at AC-21, 400 V 100A, Rated operation power at AC-3, 400 V 37kW, Rated short-time withstand current lcw 2kA, Rated operation power at AC-23, 400 V 55kW, Switching power at 400 V 55kW, Conditioned rated short-circuit current Iq 4kA, Number of poles 4, Number of auxiliary contacts as normally closed contact 0, Number of auxiliary contacts as normally open contact 0, Number of auxiliary contacts as change-over contact 0, Device construction Built-in device fixed built-in technique, Suitable for front mounting 4-hole, Colour control element Red, Type of control element Door coupling rotary drive, Interlockable, Type of electrical connection of main circuit Screw connection…

154,30

6EP3333-6SB00-0AY0 - DC-power supply 240V/24V 96W 6EP3333-6SB00-0AY0

EAN: 4025515154860 - manufacturer-number: 6EP3333-6SB00-0AY0 - DC-power supply 240V/24V 96W Voltage type of supply voltage AC/DC, 1st secondary output voltage 24 ... 24V, Max. output current 1 4A, Secondary voltage adjustable, Nominal value output voltage 1 24V, Nominal value output current 1 4A, Short-circuit-proof, Rated supply voltage at AC 50 Hz 240 ... 240V, Rated supply voltage at AC 60 Hz 100 ... 100V, Power output 96W, Type of electric connection Screw connection, Suitable for DIN installation panels, Built-in width 72mm, Built-in height 130mm, Direct mounting possible, Width 72mm, Height 90mm, Depth 53mm, Degree of protection (IP) IP20 - 6EP3333-6SB00-0AY0

110,69

PXL-B13/1 - Miniature circuit breaker 1-p B13A PXL-B13/1
