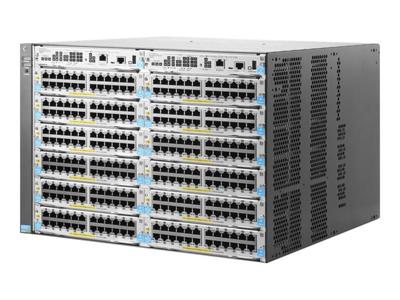

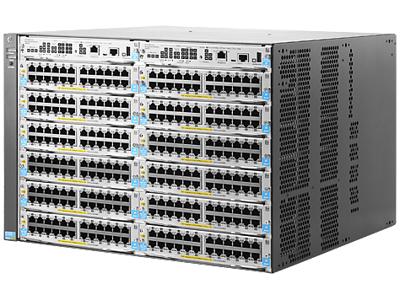

Hp e 5412R ZL2 Switch

Productspecificaties

Artikelnummer(s)

EAN

0888182309032

Beheerfuncties

Switch type

Managed

Data-uitwisseling

Switchingcapaciteit

1920 Gbit/s

Throughput

1142,8 Mpps

Latentie (1 Gbps)

2,9 µs

Latentie (10 Gbps)

2 µs

Design

Kleur van het product

Grijs

Prestatie

Type processor

Ja

Processormodel

QorIQ P2020

Frequentie van processor

1200 MHz

Type geheugen

DDR3-SDRAM

Intern geheugen

4096 MB

Flash memory

16 MB

Energie

Vermogenstoevoer inclusief

Nee

AC-ingangsspanning

200 - 240 V

Netvoeding voetnoot

4 power supply slots 2 minimum power supplies required (ordered separately)

Power over Ethernet (PoE)

Power over Ethernet (PoE)

Nee

Overige specificaties

Latentie

1000 Mb Latency: < 2.8 µs; 10 Gbps Latency: < 1.8 µs; 40 Gbps Latency: < 1.5 µs

Geheugen en processor

Depend on the model: Dual Arm Cortex A9 at 1 GHz; Packet buffer size: 13.5 MB internal Arm 11 at 450 MHz; Packet buffer size: 18 MB internal. Dual Arm Cortex A9 at 1; Packet buffer size: 13.5 MB internal Arm 11 at 550 MHz; Packet buffer size: 18 MB internal. Dual Arm Cortex A9 at 1 GHz; Packet buffer size: 13.5 MB internal Freescale P2020 dual core at 1.2 GHz, 16 MB flash, 1 GB SD Card, 4 GB DDR3 SODIMM.

Aansluitingen

12 open module slots Supports a maximum of 288 autosensing 10/100/1000 ports or 288 SFP ports or 96 SFP+ ports or 96 HPE Smart Rate Multi-Gigabit or 24 40 GbE ports, or a combination.

Prestatiebeheer

HPE Aruba Networking Management Software HPE Aruba Networking Central HPE Intelligent Management Center Basic Software Platform (IMC) Command-line interface Web browser Configuration menu Out-of-band management (RJ-45 Ethernet) Out-of-band management (serial RS-232C or micro USB) SNMP manager

Gewicht (imperiaal)

17,3 kg (38.1 lbs)

Afmetingen (B x D x H) (Brits)

444,5 x 450,9 x 307,3 mm (17.5 x 17.8 x 12.1")

Eisen aan de omgeving

Warmtedissipatie

4900 BTU/h

Gewicht en omvang

Breedte

444,5 mm

Diepte

450,9 mm

Hoogte

307,3 mm

Gewicht

17,3 kg
